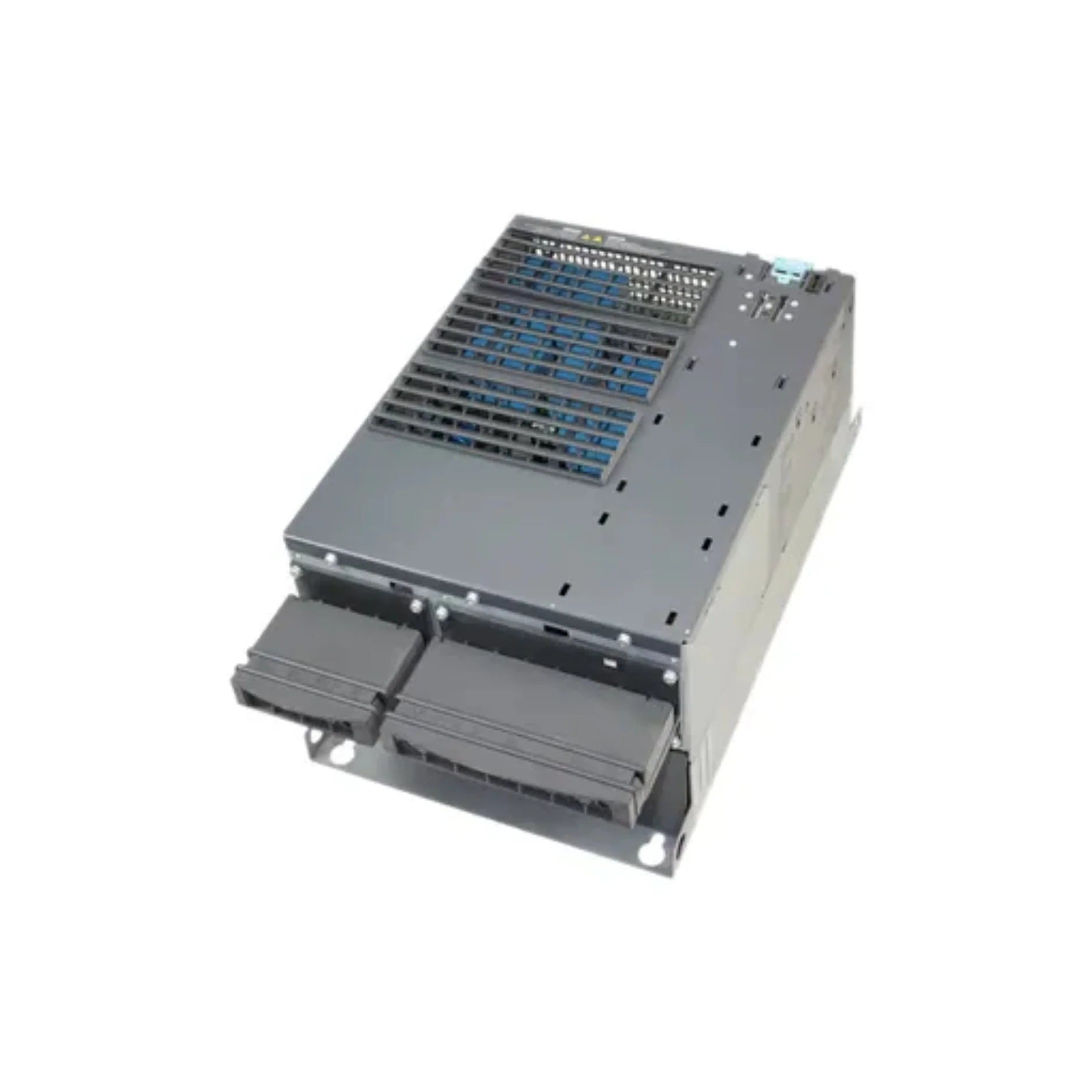

Siemens 6SL3225-0BE31-5AA0
Overview
The Siemens 6SL3225-0BE31-5AA0 is a PM250 Power Module for the SINAMICS G120 drive system, offering energy-efficient operation through regenerative feedback to the line supply. With a compact design and 15 kW rated power, it is ideal for dynamic industrial applications.
Key Features
-
PM250 regenerative Power Module for SINAMICS G120
-
Regenerative energy recovery to the power grid
-
Rated power: 15 kW
-
Input voltage: 3AC 400 V
-
Booksize format for space-saving installations
-
Integrated Safe Torque Off (STO) function
-
Optimized for high-performance applications
-
Compatible with CU240 and CU250 series control units
Technical Specifications
-
Siemens Code: 6SL3225-0BE31-5AA0
-
Input Voltage: 3AC 380–480 V ±10%
-
Rated Power: 15 kW
-
Rated Current: 30 A
-
Braking Method: Regenerative feedback (no brake resistor required)
-
Cooling Type: Internal air cooling
-
Mounting: Booksize for control cabinets
-
Protection Rating: IP20
-
Ambient Temperature: 0 to +40 °C (without derating)
Applications
-
Material handling systems
-
Pumps and fans with braking needs
-
Packaging and textile machinery
-
Applications requiring energy recovery
-
General-purpose industrial automation
Why Choose Siemens 6SL3225-0BE31-5AA0?
-
Reduces energy costs with regenerative feedback
-
Space-saving design simplifies integration
-
High performance for dynamic motion control
-
Safety Integrated for reduced system complexity
-
Backed by Siemens quality and support
Order Now
Improve efficiency and performance with the Siemens 6SL3225-0BE31-5AA0 PM250 Power Module — energy-regenerative, compact, and built for SINAMICS G120.
Return to the Siemens Sinamics Drives collection to explore more options including V20, G120, G130, G150, and S120 series for advanced industrial motor control.
You can also browse the Siemens Variable Frequency Drives (VFDs) main category to view the complete Siemens portfolio of Sinamics, Micromaster, and SIMOVERT VFDs.
