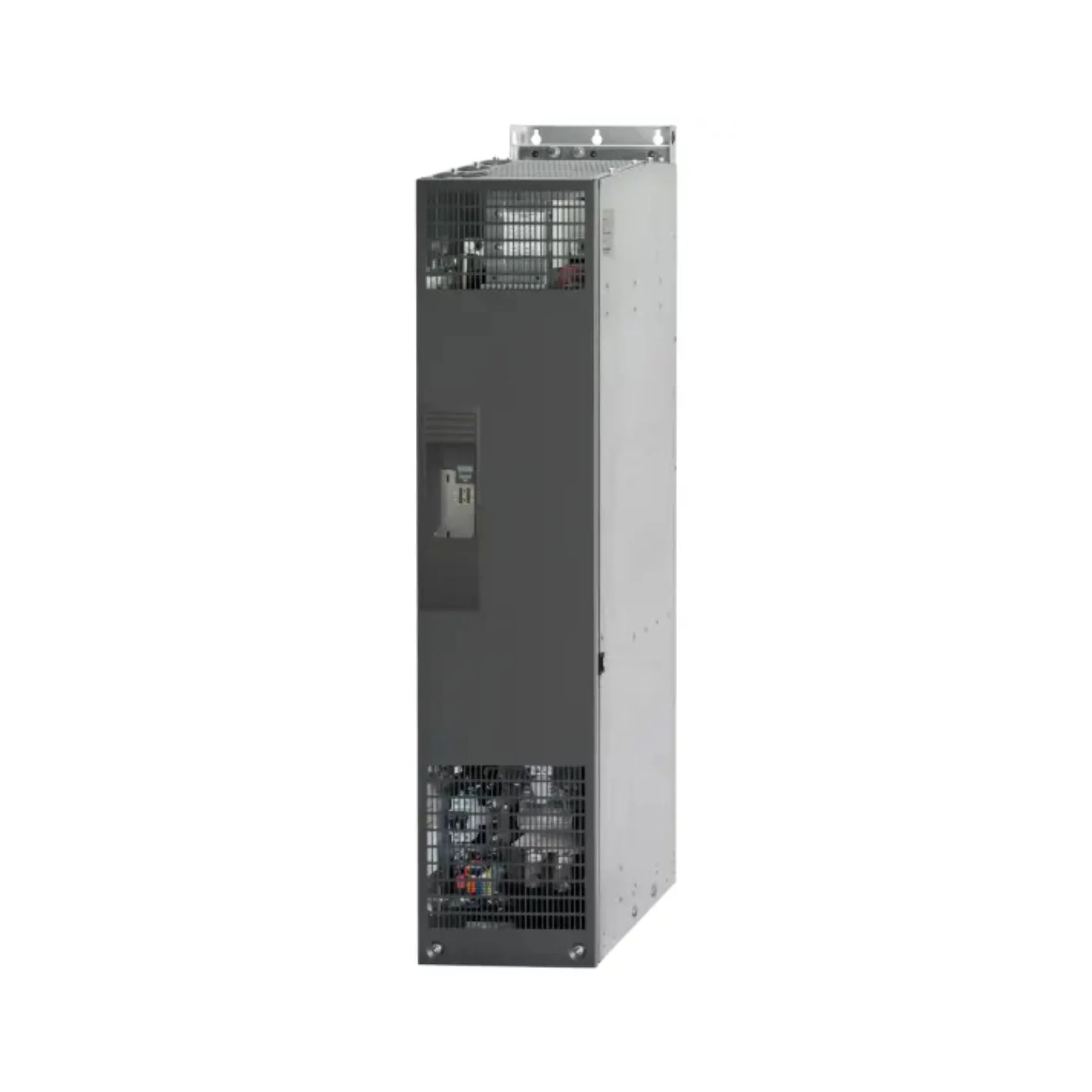

Siemens 6SL3224-0XE41-6UA0
Overview
The Siemens 6SL3224-0XE41-6UA0 is a PM240P-2 power module for SINAMICS G120X drives, specifically engineered for infrastructure and industrial applications such as water supply, wastewater, and HVAC systems. This 160 kW module provides efficient, reliable motor control with robust overload capability and integrated features for optimized system performance.
Key Features
-
PM240P-2 power module for SINAMICS G120X
-
Rated output: 160 kW at 400 V
-
Air-cooled with integrated brake chopper
-
Frame size: FSG
-
High overload (HO) and low overload (LO) operation
-
Compatible with G120X Control Units
-
Unfiltered version for custom EMC solutions
-
Energy-efficient operation and wide voltage tolerance
-
Built-in safety and diagnostic functions
Technical Specifications
-
Siemens Code: 6SL3224-0XE41-6UA0
-
Input Voltage: 3AC 380–480 V ±10%
-
Output Power: 160 kW
-
Output Current: 302 A (LO), 248 A (HO)
-
Overload Capacity: 110% (HO), 150% (LO)
-
Cooling Method: Internal air cooling
-
Brake Chopper: Integrated
-
Mounting: Control cabinet (side-by-side)
-
Protection Class: IP20
-
Operating Temperature: –10 °C to +50 °C (without derating)
-
Conformity: IEC/EN drive standards
Applications
-
Water and wastewater treatment
-
Heating, ventilation, and air conditioning (HVAC)
-
Pumps and fans in infrastructure systems
-
Building automation
-
Industrial fluid transport
Why Choose Siemens 6SL3224-0XE41-6UA0?
-
Powerful and scalable solution for infrastructure needs
-
Designed for water and HVAC-specific applications
-
Modular SINAMICS G120X system compatibility
-
Excellent energy efficiency and motor control
-
Siemens support and long-term availability
Order Now
Optimize infrastructure drive systems with the Siemens 6SL3224-0XE41-6UA0 PM240P-2 power module — performance and reliability for water and HVAC control.
Return to the Siemens Sinamics Drives collection to explore more options including V20, G120, G130, G150, and S120 series for advanced industrial motor control.
You can also browse the Siemens Variable Frequency Drives (VFDs) main category to view the complete Siemens portfolio of Sinamics, Micromaster, and SIMOVERT VFDs.
