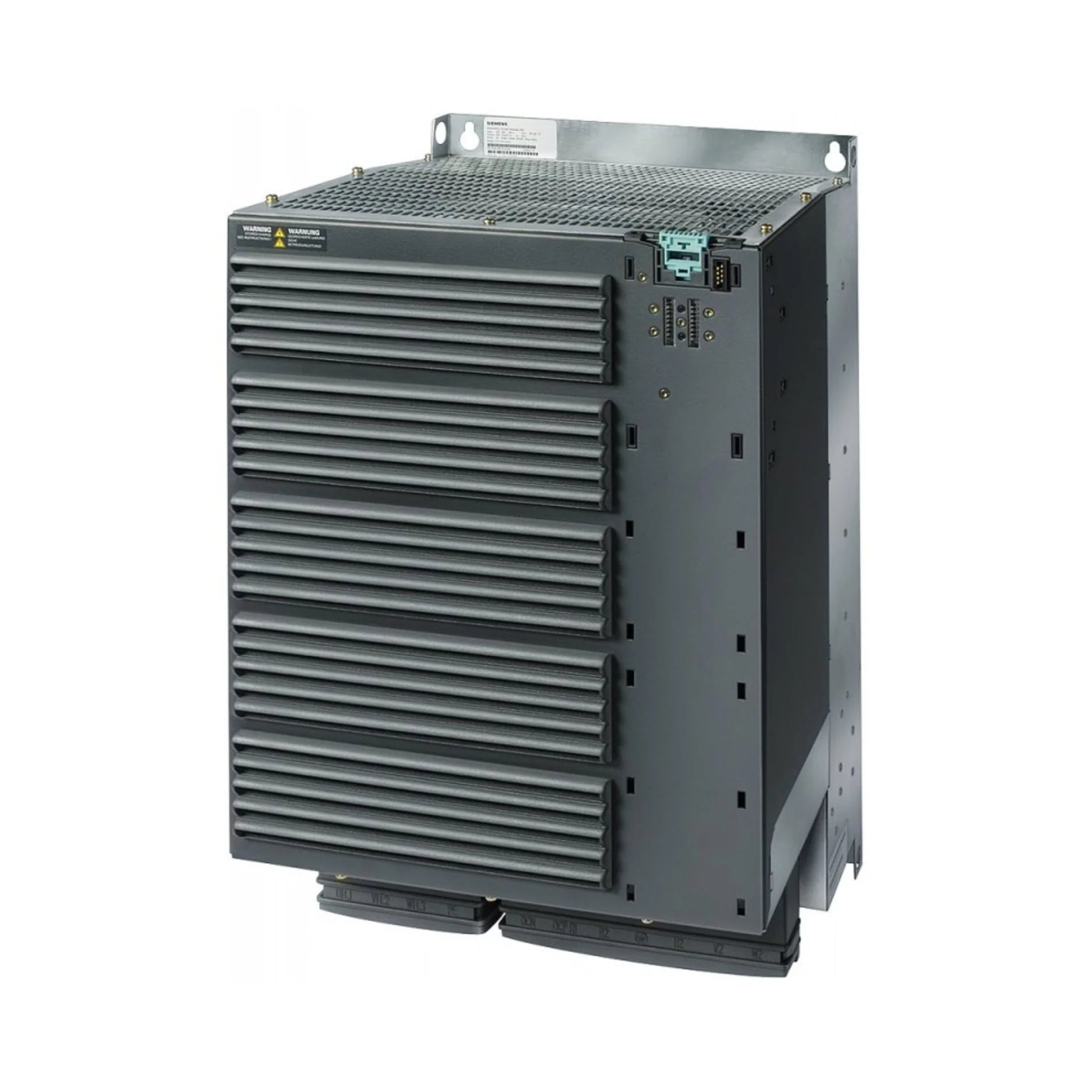

Siemens 6SL3224-0BE37-5AA0
Overview
The Siemens 6SL3224-0BE37-5AA0 is a PM250 Power Module for the SINAMICS G120 modular drive system. Featuring regenerative energy recovery, this 75 kW unit is engineered for dynamic applications with braking needs, enabling energy-efficient and space-saving installations.
Key Features
-
Regenerative PM250 Power Module for SINAMICS G120
-
Rated power: 75 kW
-
Regenerative feedback to the power grid
-
Input voltage: 3AC 400 V
-
Integrated Safe Torque Off (STO) function
-
Booksize design for compact cabinet installation
-
Internal air cooling
-
Compatible with CU240 and CU250 series control units
Technical Specifications
-
Siemens Code: 6SL3224-0BE37-5AA0
-
Input Voltage: 3AC 380–480 V ±10%
-
Rated Power: 75 kW
-
Rated Current: Approx. 145 A
-
Braking Method: Regenerative feedback (no external resistor needed)
-
Cooling Type: Internal air cooling
-
Protection Rating: IP20
-
Mounting: Booksize, cabinet-compatible
-
Ambient Temperature: 0 to +40 °C (without derating)
Applications
-
Material handling and logistics systems
-
Dynamic pump and fan control
-
Packaging and process automation
-
Systems requiring frequent braking cycles
-
General industrial energy-saving installations
Why Choose Siemens 6SL3224-0BE37-5AA0?
-
Energy-efficient regenerative operation
-
Compact footprint for easy integration
-
Built-in safety with STO function
-
High-performance for dynamic applications
-
Backed by Siemens' engineering excellence
Order Now
Upgrade your modular drive system with the Siemens 6SL3224-0BE37-5AA0 — a powerful and efficient PM250 Power Module for SINAMICS G120.
Return to the Siemens Sinamics Drives collection to explore more options including V20, G120, G130, G150, and S120 series for advanced industrial motor control.
You can also browse the Siemens Variable Frequency Drives (VFDs) main category to view the complete Siemens portfolio of Sinamics, Micromaster, and SIMOVERT VFDs.
