Siemens 6SL3224-0BE34-5UA0
Overview

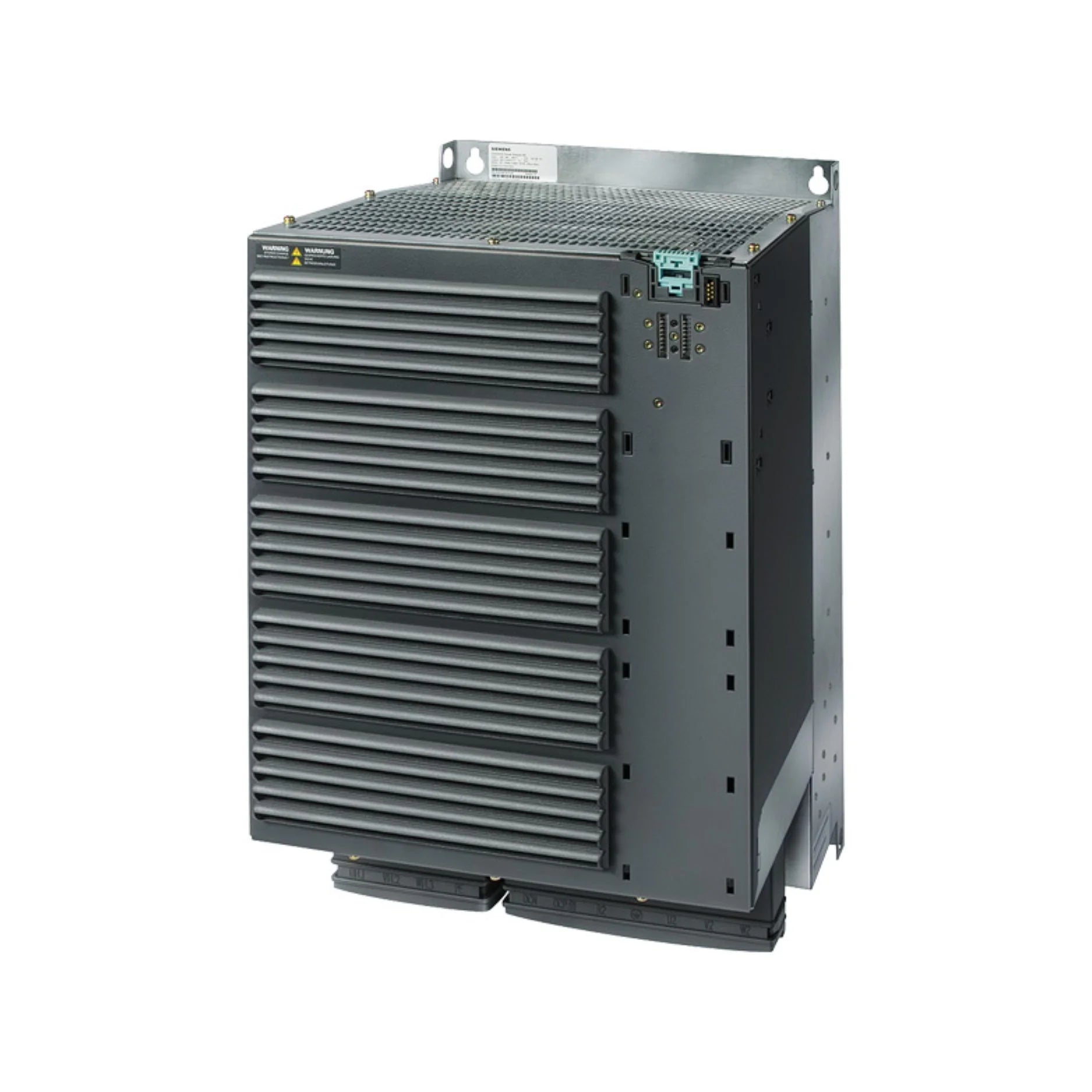

The Siemens 6SL3224-0BE34-5UA0 is a PM240-2 power module designed for use with SINAMICS G120 converters. With a power rating of 45 kW and integrated braking chopper, it enables dynamic and efficient motor control for a broad range of industrial applications.
Key Features
-
Rated power: 45 kW (60 HP)
-
Input voltage: 3AC 380–480 V ±10%
-
Integrated braking chopper
-
Energy-efficient operation
-
Optimized for cabinet installation
-
Compatible with Control Units CU230P and CU240E series
-
Compact and service-friendly design
-
UL, CE, and RoHS compliant
Technical Specifications
-
Siemens Code: 6SL3224-0BE34-5UA0
-
Product Type: Power Module PM240-2
-
Power Rating: 45 kW
-
Rated Output Current: Approx. 87 A
-
Input Voltage: 3AC 380–480 V ±10%
-
Braking Chopper: Integrated
-
Cooling Method: Internal air cooling
-
Protection Class: IP20
-
Mounting: Vertical in control cabinet
-
Dimensions (HxWxD): Approx. 600 × 250 × 270 mm
Applications
-
Conveyors and hoisting systems
-
Pumps, fans, and compressors
-
Packaging and textile machinery
-
General automation systems
-
Energy-efficient motor control systems
Why Choose Siemens 6SL3224-0BE34-5UA0?
-
Integrated braking for precise motor handling
-
Efficient energy use and heat dissipation
-
Flexible compatibility with SINAMICS control units
-
Long service life and robust performance
-
Trusted Siemens quality and global support
Order Now
Boost your system’s efficiency and control with the Siemens 6SL3224-0BE34-5UA0 – a high-performance power module for SINAMICS G120 drives.
Return to the Siemens Sinamics Drives collection to explore more options including V20, G120, G130, G150, and S120 series for advanced industrial motor control.
You can also browse the Siemens Variable Frequency Drives (VFDs) main category to view the complete Siemens portfolio of Sinamics, Micromaster, and SIMOVERT VFDs.
