Siemens 6SL3224-0BE31-8UA0
Overview

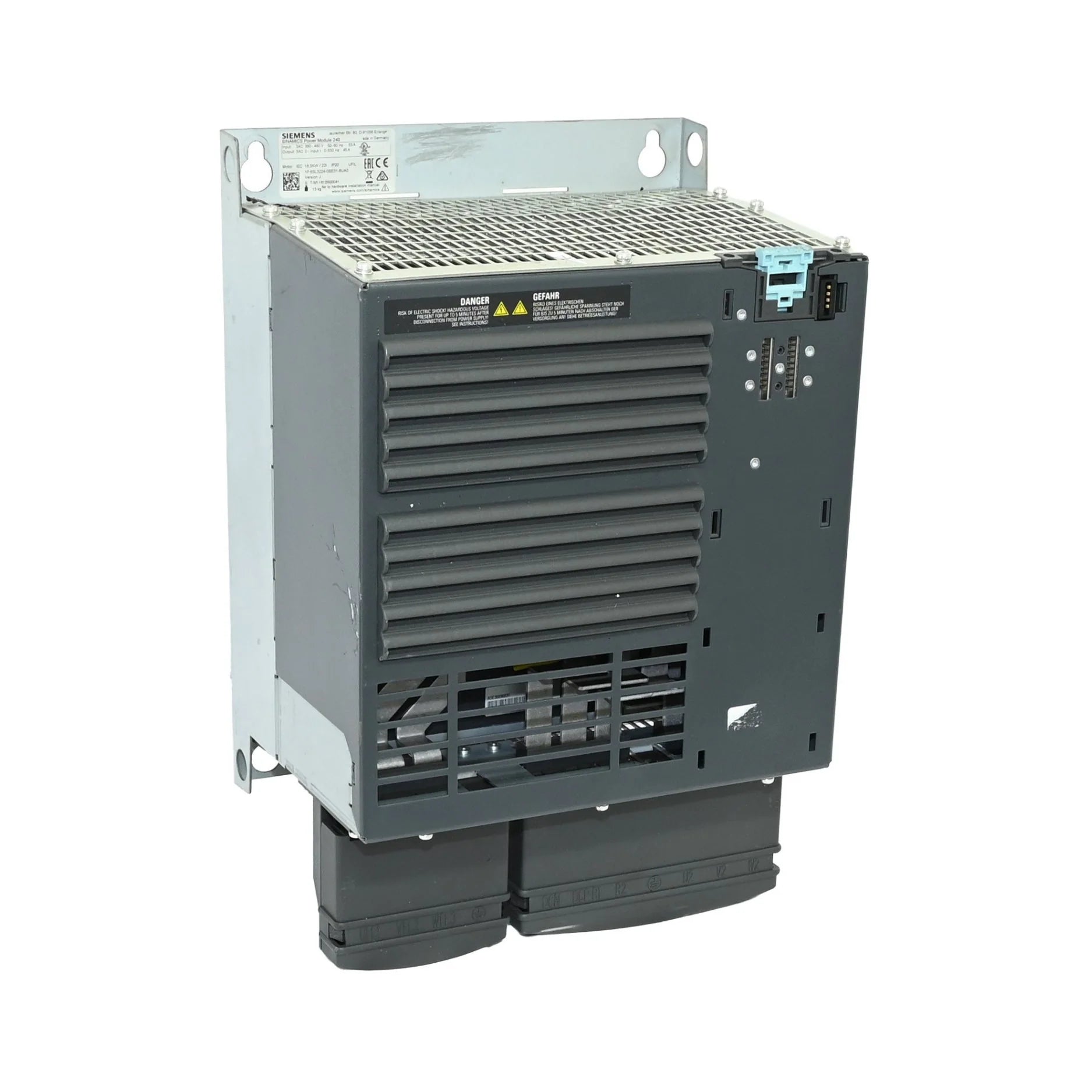

The Siemens 6SL3224-0BE31-8UA0 is a PM240-2 power module from the SINAMICS G120 family, designed to deliver high-performance and energy-efficient motor control. With a power output of 18.5 kW and an integrated brake chopper, this module supports versatile applications in manufacturing, material handling, and infrastructure systems.
Key Features
-
PM240-2 power module for SINAMICS G120
-
Rated output: 18.5 kW
-
Input voltage: 3AC 380–480 V ±10%
-
Integrated braking chopper
-
Optimized for dynamic applications
-
Internal air cooling for compact control cabinets
-
Modular and scalable design
-
Suitable for heavy-duty and standard duty cycles
-
Wide compatibility with Siemens control units
Technical Specifications
-
Siemens Code: 6SL3224-0BE31-8UA0
-
Input Voltage: 3AC 380–480 V ±10%
-
Output Power: 18.5 kW
-
Output Current: Approx. 38 A (LO) / 31 A (HO)
-
Overload Capacity: 110% (LO), 150% (HO)
-
Cooling Method: Internal air cooling
-
Brake Chopper: Integrated
-
Protection Rating: IP20
-
Mounting: Control cabinet (side-by-side possible)
-
Ambient Temp.: –10 °C to +50 °C (no derating)
-
Compliance: IEC/EN 61800
Applications
-
Industrial automation and conveyors
-
Packaging and bottling machines
-
Material transport systems
-
HVAC and infrastructure equipment
-
Processing machinery
Why Choose Siemens 6SL3224-0BE31-8UA0?
-
Robust performance in demanding environments
-
Modular integration with SINAMICS G120 drives
-
Enhanced energy efficiency and braking functionality
-
Siemens reliability and long-term service support
-
Ideal for both standard and dynamic load profiles
Order Now
Enhance your automation performance with the Siemens 6SL3224-0BE31-8UA0 — the trusted PM240-2 module for flexible, scalable motor control solutions.
Return to the Siemens Sinamics Drives collection to explore more options including V20, G120, G130, G150, and S120 series for advanced industrial motor control.
You can also browse the Siemens Variable Frequency Drives (VFDs) main category to view the complete Siemens portfolio of Sinamics, Micromaster, and SIMOVERT VFDs.
